Gear pump(gear oil pump) is horizontal rotary pump. Working pressure is generated by the two mutually
meshinggears. This pump is suitable for conveying a variety of liquid lubrication.E.g.: Crude oil,diesel oil,lubricants,oil-type liquid. Copper gear can be used for transportation of low flash point liquid.E.g.:Gasoline,benzene. Stainless steel type is suitable for weak corrosive liquid and beverage. Normally temperature of liquid should not be over 70¡æ. High temperature material can resist liquid with temperature ¡Ü300¡æ. |

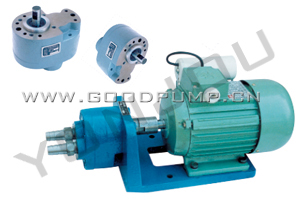

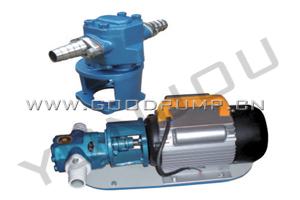

CB-B,WCB,S, Micro gear oil pump
Capacity range: 10-125L/min
Head range: 10-30M
Caliber range: 10-32mm
Power range: 0.18-2.2kw
Max medium temperature: 60¡æ
Material: Cast iron,Stainless steel |
Application: Crude oil,diesel oil,lubricants,oil-type liquid.
Structure principle: |
